MycilaUtilities
Utility helpers for Arduino / ESP32: PID controller, timing helpers, circular buffer, etc.
![]() |
![]() |
Quick links
- Source: https://github.com/mathieucarbou/MycilaUtilities
- Examples:
examples/
- API headers:
src/
- Classes reference:
docs/CLASSES.md
Classes and utilities
This repository includes a few focused utility classes. See docs/CLASSES.md
for the full short reference; the main types are:
Mycila::PID
— flexible PID controller with modes, anti-windup, json export (optional), pause/resume and reset.Mycila::CircularBuffer<T,N>
— small fixed-size numeric circular buffer with rolling stats (avg/sum/min/max).Mycila::ExpiringValue<T>
— value container with expiration semantics and optional JSON export.Mycila::string
— string helper utilities (trim, case conversion, formatting floats).Mycila::Time
— helpers for formatting Unix timestamps, converting HH:MM, and time-range checks.
Mycila::PID (src/MycilaPID.h)
A compact and flexible PID controller. Key features:
- Configurable Kp, Ki, Kd and tunings
- Proportional and derivative modes (ON_ERROR or ON_INPUT)
- Integral correction modes (OFF or CLAMP)
- Output limits and optional anti-windup
- Reverse mode, time-sampling mode, pause/resume, and reset with optional initial output
- State getters (pTerm/iTerm/dTerm/last input/output) and optional JSON export when
MYCILA_JSON_SUPPORT
is enabled

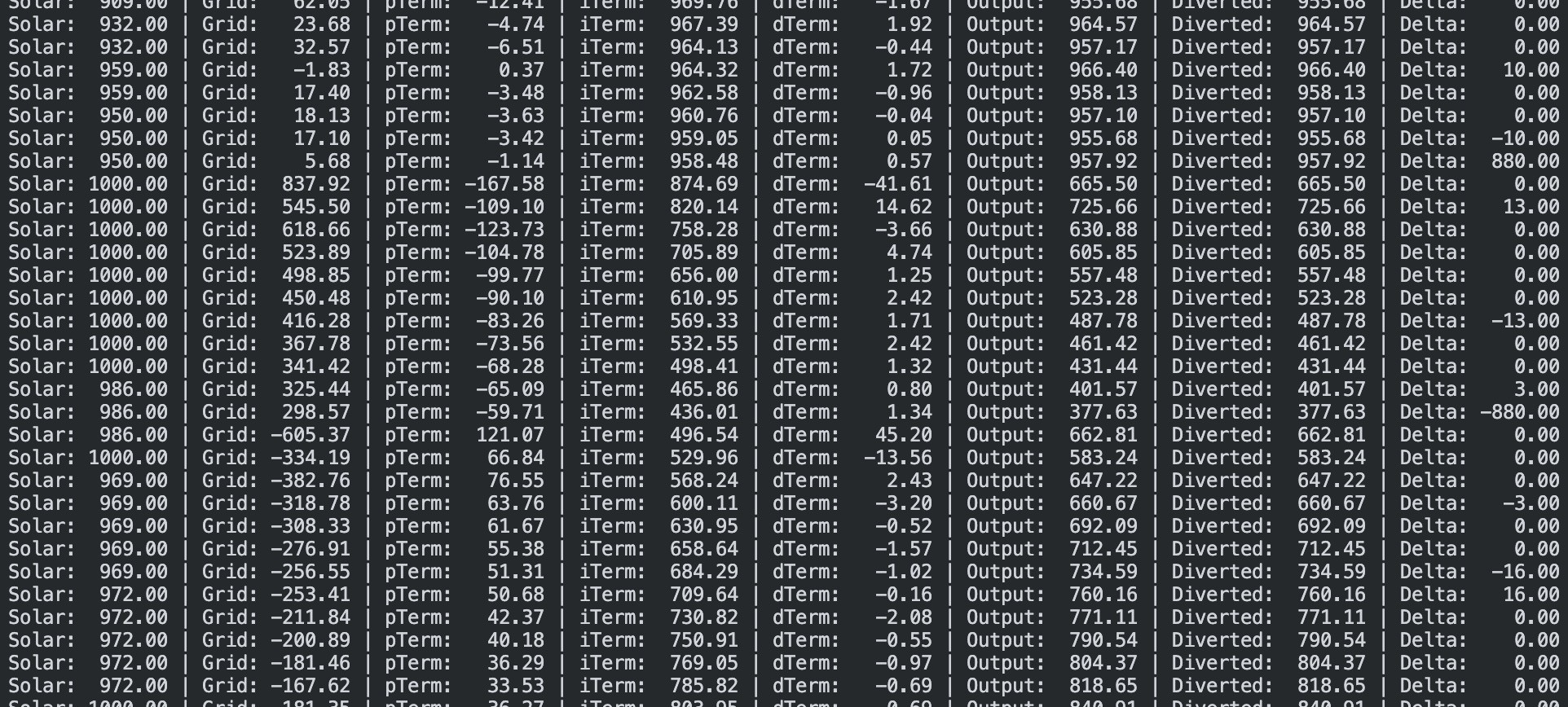

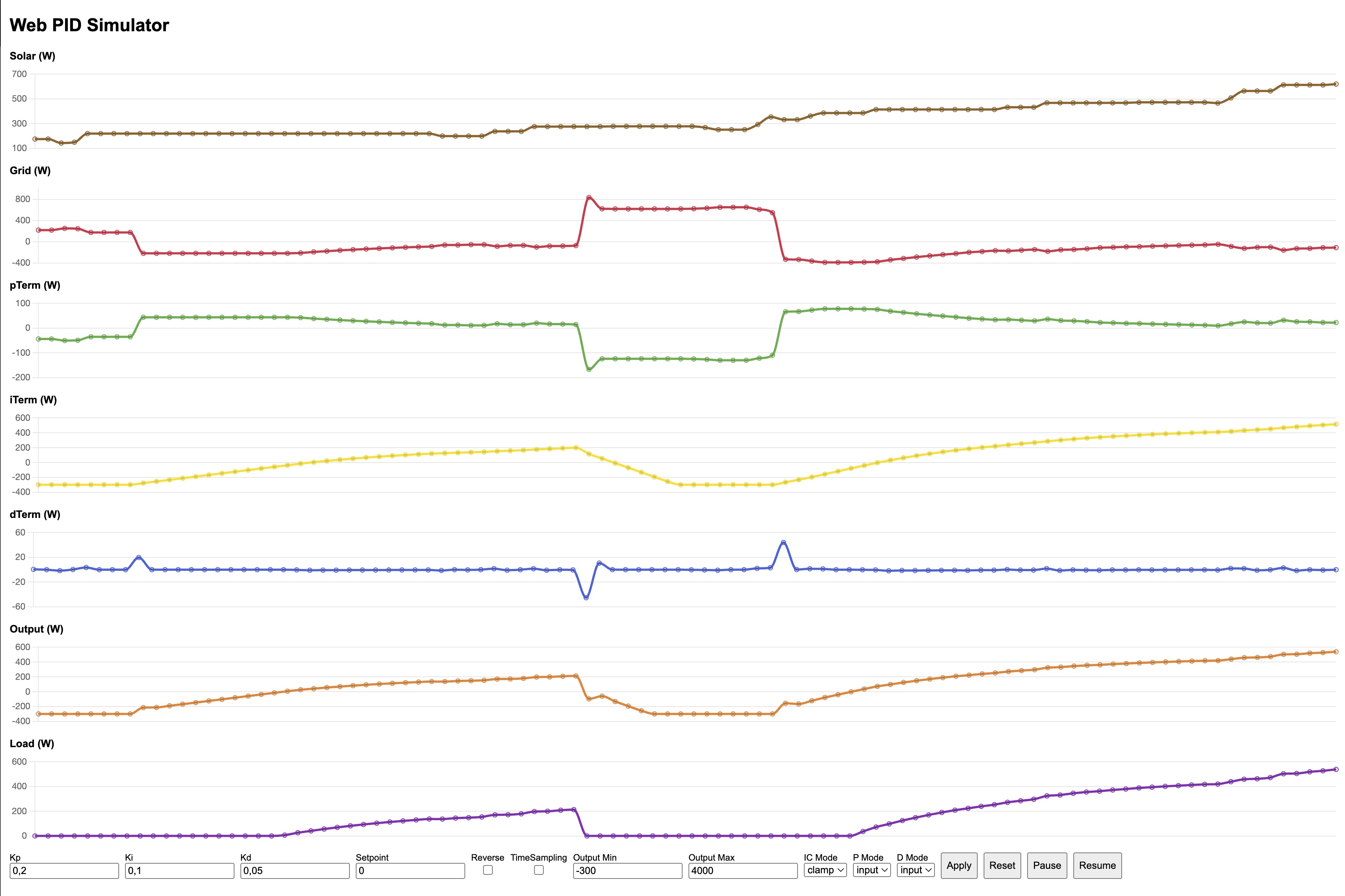

PID Simulator available in examples/PIDSimulator
(video link)
Full PID controller documentation is available at https://mathieu.carbou.me/MycilaUtilities/pid
Mycila::CircularBuffer<T,N> (src/MycilaCircularBuffer.h)
A fixed-size circular buffer specialized for numeric types (integers and floating point).
- O(1) add and rolling statistics: count, sum, avg, min, max, first/last, diff, rate
- Useful for smoothing, moving averages, and small-window metrics
Mycila::ExpiringValue (src/MycilaExpiringValue.h)
Holds a value with an optional expiration time (milliseconds).
- Update the value and obtain the old value
- Check presence/expiration and retrieve the value or an alternative
- Optional JSON export when
MYCILA_JSON_SUPPORT
is enabled
Mycila::string (src/MycilaString.h)
Small string helper utilities:
- toLowerCase / toUpperCase
- trim, startsWith, endsWith
- to_string(float,double,decimals)
Mycila::Time (src/MycilaTime.h)
Time helpers:
- Format Unix timestamps to ISO8601 or local strings
- Convert HH:MM to minutes and check if a time is in a range
- Format seconds into D HH:MM:SS
If you’d like, I can expand this page with example snippets, code references, or copy parts of header comments into the docs.
Examples
See examples/
for demonstrations and working sketches, including a PID simulator and web UI examples.
Contributing
Contributions are welcome — please follow the CODE_OF_CONDUCT.md
and open PRs against main
.
License
MIT
